Self Propelled Combine Harvester
Ashok Leyland / Kirloskar
6-row maize cutter head
5
Maize
Specialized for maize harvesting with precision cutting and minimal grain loss and Power Steering

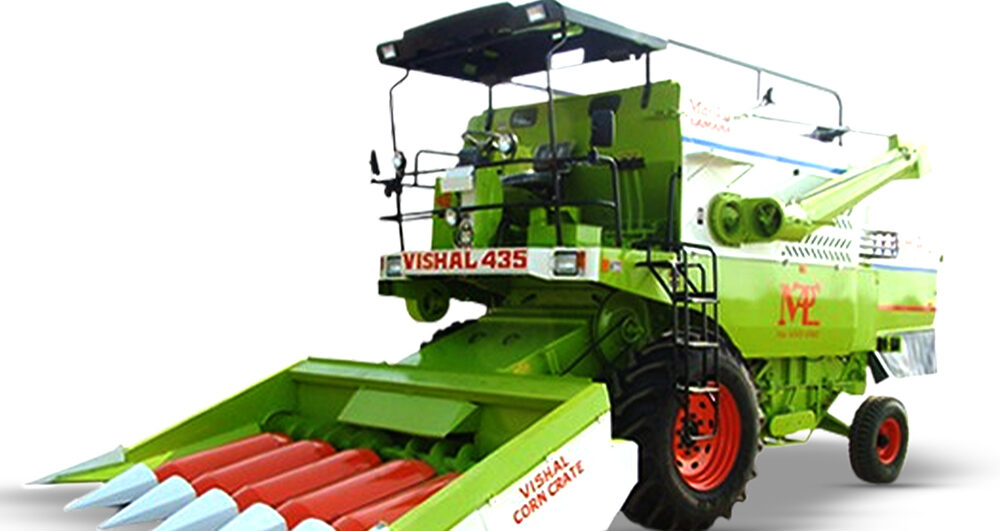

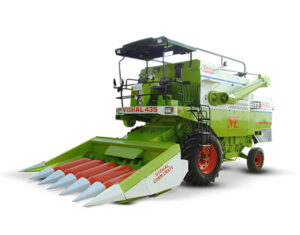

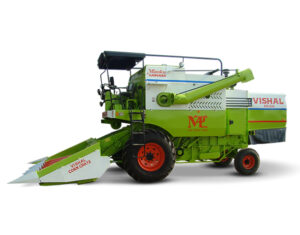

VISHAL 435 Corn Collector is self propelled combine harvester that harvests grain crops in three separate operations comprising harvesting, reaping, threshing and winnowing into a single process. Among the crops harvested with this combine harvester are wheat, oats, rye, barley, soybean, sunflower, grame and pulses. The waste straw left behind on the field is the remaining dried stems and leaves of the crop with limited nutrients which is either chopped and spread on the field or baled for feed and bedding for livestock. VISHAL Combine Harvesters are one of the most economically important labour and time saving harvesting machines, significantly reducing the fraction of the population that must be engaged in agriculture.
Features and Highlights:
|
|
| Detailed Specification | ||||
| MANUFACTURER | MANKU Agro Tech Private Limited. | |||
| Address of Manufacturer | Sehajpura Road, Samana – 147101, Distt. Patiala, Punjab. INDIA | |||
| MAKE | VISHAL | |||
| Model | 435 – BRISK – Corn Collector (Maize Special) | |||
| Type | Self Propelled Combine Harvester | |||
| ENGINE | ||||
| Make | ASHOK LEYLAND | |||
| Model | ALU 402 | |||
| Type | Four Stroke, Water Cooled, Direct Injection Diesel Engine. | |||
| Maximum Speed at no load | 2400 RPM | |||
| Rated Speed | 2200 RPM | |||
| Rated Speed for Field Operations | 1750 | |||
| No. of Cylinder | Six | |||
| THRESHING DRUM | FOR WHEAT | FOR PADDY | ||
| Type | Rasp Bar | Peg Tooth | ||
| Width (mm) | 1270 | 1265 | ||
| Outside dia (mm) | 600 | 600 | ||
| Range of speed corresponding to 7 RPM of engine (RPM) | ||||
| Minimum | 477 | 477 | ||
| Maximum | 1070 | 1070 | ||
| STRAW WALKER | ||||
| No. of Straw Walker | Five | |||
| Type | Closed Rack Type. Serrated side edges with 6 steps on each Straw Walker. | |||
| Size of each Straw Walker | ||||
| Length (mm) | 3990 | |||
| Width (mm) | 240 | |||
| Area (M2) | 0.95 | |||
| Effective separating area of straw walker (M2) | 5.31 | |||
| Lift/throw (mm) | 140/140 | |||
| Oscillation per minute corresponding to 1750 RPM of Engine | 144 | |||
| GRAIN TANK | ||||
| Location | On top of Combine, Behind Operator’s Seat. | |||
| Capacity: Volume Basis (M3) | 2.18 | |||
| Capacity: Mass Basis (kg) | 1810 | |||
| TYRES | ||||
| Front | 18.4-30,12PR | |||
| Rear | 9.00,16PR | |||
| Break System | Disc Brake | |||
| Ground Clearance | 1761 | |||
| CONCAVE | FOR WHEAT | FOR PADDY | ||
| Overall Width of Concave (mm) | 1290 | 1285 | ||
| Effective Width (mm) | 1255 | 1250 | ||
| Type of Concave | Open flat bars | Open flat bars with pegs in three rows. | ||
| No. of Bars | 12 | 8 | ||
| No. of Pegs per bars | – | 18 nos in two rows and 15 nos in one row | ||
| CLEANING SIEVES | ||||
| TOP Sieve | ||||
| No of sieve | Two | |||
| Type | Open lip frog mouth type | |||
| Overall size of sieve | FRONT | REAR | ||
| Length (mm) | 1240 | 635 | ||
| Width (mm) | 1215 | 1215 | ||
| Effective cleaning area (m2) | 1.35 | 0.65 | ||
| Area of extension (m2) | NIL | NIL | ||
| BOTTOM SIEVE | ||||
| No of Sieve | One | |||
| Type | Open Lip Frog Mouth Type | |||
| Length(mm) | 1400 | |||
| Width(mm) | 1215 | |||
| Effective Cleaning Area (m2) | 1.53 | |||
| Oscillation per minute corresponding to 1750rpm of engine | 268 | |||
| Method of varying oscillation | None | |||
| Height of lips at maximum opening (mm) | 20 | |||
| No. & type of bearings of sieve shaker assembly | 8 Ball Bearings (6205FLT Polland) 12 Rubber Bushes on linkages of shaker mechanism. | |||
| CUTTER BAR ASSEMBLY | ||||
| Working width with shoes (mm) | 3480 | |||
| Effective cutter bar width (mm) | 3385 | |||
| No. of Guide Plate | Six | |||
| Distance between two Guide Plates (mm) | 560 – 610 | |||
| Type of Guide Plate | Triangular in shape, MS sheet faricated | |||
| Size of Guide Plate (mm) | Length: 650, Base Width: 450, Height: 220 | |||
| Type & Size of crop feed augers (mm) | Screw Auger | |||
| Type of snap rollers | Rectangular fitted with 4 Nos. of cutting blade | |||
| Size of snap rollers (mm) | Length: 610, Cross Section: 60×60, Number: 12 | |||
| Number of Cutting Blades | 48 | |||
| Size of Cutting Blades (mm) | Length: 555, Width: 60, Thickness: 5.5 | |||
| Width of Cutting Edge (mm) | 7 | |||
| Number & Type of Crop Conveyor (mm) | 12, Chain & Scoop | |||
| REEL ASSEMBLY | ||||
| Type | Tyne Bar Pick Up | |||
| Number of Tyne bars | Five | |||
| Size of Tyne bars (mm) | 4230 x 27 | |||
| Types of Tyne bars | Hollow metallic pipe with holes for fitting spring Tynes. | |||
| Dia of Reel (mm) | 975 | |||
| Width of Reel (mm) | 4150 | |||
| Range of speed corresponding to 1750 RPM of Engine (RPM) | Maximum: 28 Minimum: 64 | |||
| Arrangements for speed variation | Mechanical,Stepless V – Pulley with mechanical variator. | |||
| Number of tynes on each bar and their spacing | 36 (18 pairs), Spacing 113 mm | |||
| Transmission System | ||||
| CLUTCH | ||||
| Type | Dry Friction Disc | |||
| Size (mm) | 310 | |||
| GEAR BOX & DIFFERENTIAL | ||||
| Type | Mechanical, combination of constant and sliding mesh spur gear with differential unit. | |||
| No. of Speeds | Six Forward and Two Reverse with Stepless Hydraulic Variator Pulley. | |||
| OVERALL DIMESIONS | Working | Transport | ||
| Length (mm) | 8220 | 12220 | ||
| Width (mm) | 6370 | 3130 | ||
| Height | 3820 | 3820 | ||
| Weight | 9400 kg + | |||
